Waved Crisscross Contact Filter

CITY SEWAGE TREATMENT

Waved Crisscross Contact Filter

PRUIFIED WATER TREATMENT
Waved Crisscross Contact Filter SPECIFICATIONS:
Model/
Specification
Dimension
(mm)
Aperture
(mm)
Leaking rate(%)
Material
HCM-60
L×H×W
1200×600×600
58
98.7
PVC
ABS
Thickness(mm)
Effective surface
area(m2/m3)
Strength
(kg/m2)

0.4~0.45
135
1500

PRUIFIED WATER TREATMENT
INDUSTRIAL SEWAGE TREATMENT 接觸率材特性2

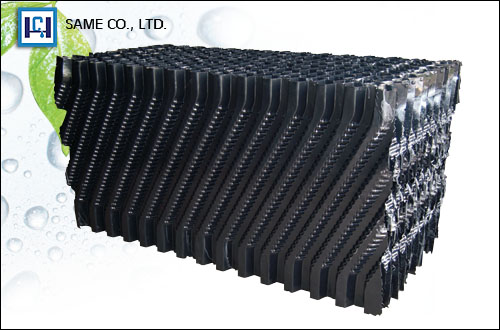

This contact filter is made with honeycombed crisscross structure.
It is made of acid-proof and It is made of acid-proof and alkali-proof PVC material with foggy surface coating so that
microbes are easy to be parasitic on.
ENVIRONMENT TECHNOLOGY
Waved Crisscross Contact FilterFEATURES:

1.Larger surface with high treatment function.
2.PVC material used, great mechanical strength, can be installed with great safety.
not easy to get broken or damaged, long consuming life.
3.Wide space between filters, not easy to get blocked.
4.Great water circulation rate.
5.High function rate of catching plankton.
6.The contact surface is designed with the functions for organisms to get cohered and to get flaked off.
7.Easy to be installed, low price with good quality.

Waved Crisscross Contact Filter

INDUSTRIAL SEWAGE TREATMENT
USAGE OF OUR WAVED CRISSCROSS CONTACT FILTER

1.To be applled to contact gas explosion system
To immerse the filters in gas explosion pond with sufficient gas
supply to produce sufficient circulation for the flowing disposal
sewage to touch the filters, after a period of time,
the organic mud(microbes) will grow and be attached to the surface
of filters and turn to be bio-membrane.
Then the bio-membrane will absorb and oxidized the organic matter.

Waved Crisscross Contact Filter
INDUSTRIAL SEWAGE TREATMENT
2.To be applied to drop-filting system:
Prop the filing materials on the disposal sewage;
use the circulation pump to drop down the
disposal sewage has been dropping through the filing material for a period of time, there will be a colloid of bio-membrane on the surface of the filing material.

Waved Crisscross Contact FilterApplications :
1. Sanitary sewer and daily sewage treatment.
2. Disposal sewage with large or small quantity
3. Third grade treatment.
4. Low density of disposal sewage treatment.
5. Treatment for disposal sewage with substance that is difficult
    to be decomposed.
6. To treat plankton that are not easy to get colloid coating or
    that have light colloid coating.
7. This treatment is good for resolving the difficult parts of disposal
    mud like water quality and quantity, and can reduce the mud quantity.
